A recent addition to the range from Hoyles is a stainless-steel call point with a vandal resistant button and re-assurance LED and sounder.

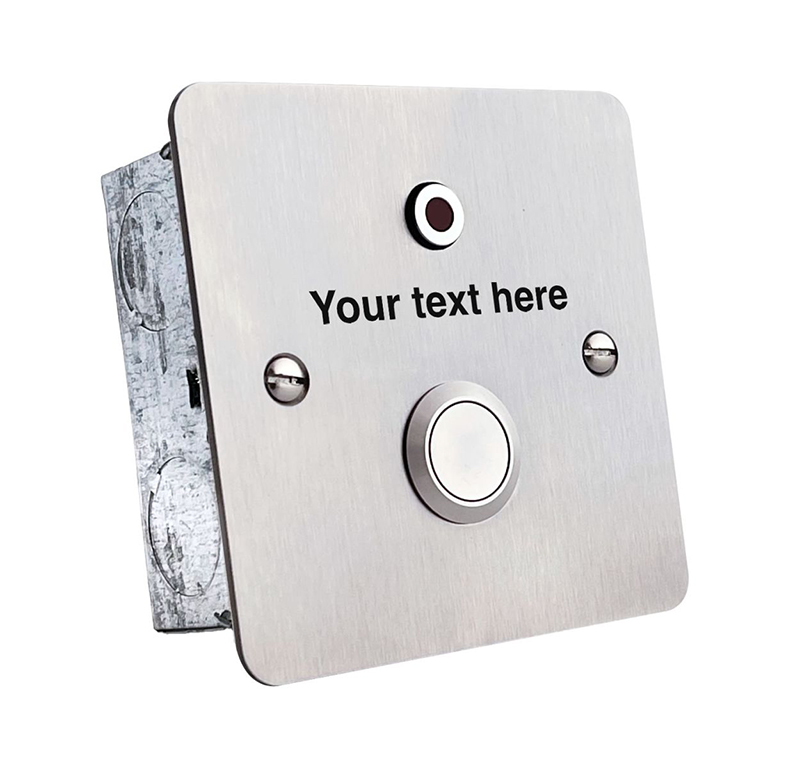

The S1705SLTC is a stainless-steel flush fitting customisable unit with vandal resistant button, re-assurance red LED and sounder. This is a non-latching momentary button with single pole normally open contact. Separate terminals are provided for the LED, sounder and button. The LED current limit resistor is provided for 12V DC operation.
The unit can be permanently lasered with custom text.
Specification:
LED Current – 20mA@12vdc
Switch Contacts – Single pole normally open 2A@ 30vdc
Sounder Current – 40mA @12vdc
Visual Indication – 1 x Red LED
Integral Sounder Level – 70db @ 10cm
Tamper – N/A
Material – 316 Grade Stainless Steel
Text – Permanently laser marked
Ideal for hygienic environments
Dimensions – 86 x 86 x 2mm – Facia
38mm galvanised back box supplied
Surface mount using S0610-38
Weight – 0.25kg
Weather gaskets for the rear of plates, anti-tamper screws and stainless steel mock pattress surrounds for surface mounting are also available.
